IKA Magnetic Stirrers without heating: C-MAG MS 4 IKAMAG®

New magnetic stirrer without heating. With ceramic set-up plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 5 l (H2O)
- Elevated control panel for protection against leaking liquids

C-MAG MS 4 IKAMAG®
Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	5 l
Stirring quantity max. (H2O)	5 l
Motor rating input	15 W
Motor rating output	1.5 W
Speed display	scale
Speed range	100 - 1500 1/min
Speed control	scale 0 - 6
Set-up plate material	ceramic
Set-up plate dimensions	120 x 120 mm
Dimensions (W x H x D)	150 x 105 x 260 mm
Weight	3 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative moisture	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	230 V
Frequency	50/60 Hz
Power input	30 W

IKA Hotplate: C-MAG HP 4 IKATHERM®

New hotplate made of ceramic glass which offers excellent chemical resistance.
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Exact temperature setting via digital display (LED)
- Digital error code display
- Elevated control panel for protection against leaking liquids

C-MAG HP 4 IKATHERM®
Number of heating points	1
Heat output	250 W
Heating temperature range	50 - 500 °C
Heat control	LED
Heat control accuracy	10 ±K
Heating rate (1 l H2O in H15)	2.5 K/min
Set-up plate material	ceramic
Set-up plate dimensions	120 x 120 mm
Dimensions (W x H x D)	150 x 105 x 260 mm
Weight	3 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative moisture	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	230 V
Frequency	50/60 Hz
Power input	255 W

Eppendorf: epTIPS

• Drop contour gives all the tips a uniform look
• Soft, flexible tip cone results in better pipette tip seal
• Ergonomically optimized cone geometry allows perfect fit on the eppendorf pipette
• Universally applicable, also for use with pipettes from other manufacturers
• Fine graduations make it easy to visually check the volume pipetted
• Available in three purity levels (Eppendorf Quality, PCR clean, Eppendorf Biopur®)
• Special tip design and various lengths enable better access to wider variety of tips and wells
• Finely tapered and extended tips for working with small volumes
• Intended Use (pdf-file)

epTIPS Standard

epTIPS Standard are original, high-quality eppendorf pipette tips at an attractive price Packed in re-sealable bags Available in all tip sizes from 10 µl to 10 ml 200 µl, 300 µl and 1,000 µl tips are color coded, yellow and blue, respectively

epTIPS Racks

Eppendorf Biopur pipette tips provide maximum biological purity, (guaranteed sterile, pyrogen-free, RNase-free, DNA-free and ATP-free, thus satisfying the most stringent demands in medicine, the pharmaceutical and food industries, molecular biology and cell technology Continuous control of each batch by an independent laboratory Batch-related certifi cates available on request or on the internet at www.eppendorf.com Packed in racks of 96, 48 or 24 tips, depending upon tip volume

epTIPS Set, epTIPS Box and epTIPS Reloads

epTIPS Set Starter kits consist of a box and 5 refill trays epTIPS Box and epTIPS Reloads The refill system, depending on tip size, is packaged either dual-sided or in stack form Contamination-free transfer of trays to the working box System optimized for use with multi-channel pipettes Refill trays can be autoclaved in advance Tips can be used straight from the refill packaging Reduced waste compared to disposable racks All components 100 % recyclable Space-saving packaging Color-coded trays for simple identification of tips and matching eppendorf pipette Reloads available in two purity levels: Eppendorf Quality and PCR clean

epTIPS Singles

Eppendorf Biopur® pipette tips, individually wrapped Batch number and expiration date on each blister pack Continuous control of each batch by an independent laboratory Batch-specific certificates available on request or on the internet at www.eppendorf.com

Eppendorf: PCR Rack

• Rack for handling and storing tubes and plates
• For PCR tubes, PCR tube strips and 96 well PCR plates
• Stackable
• Can be stored down to -90°C
• Autoclavable (121°C, 20 min.)

Eppendorf: PCR-Cooler

Description

By changing color from violet to pink or from dark blue to light blue, the PCR Cooler shows when upper temperature value of 7°C has been exceeded. Decisive for the cooling of samples is thereby the color value in the depressions of the PCR Cooler. The individual temperature of single tubes can be determined from the coloring of the respective receptacle bore.

Application

• For the protection, transprot and storage
  of your sensitive samples and of course for the safe stoppage of reactions.

Product features

• Cools sensitive samples reliably for more than an hour at 0°C
  (with 2 hour precooling at -20°)
• Temperature safety through color change when temperature is exceeded:
  > 7 °C : pink or light blue <>
• Simple, space saving
• Instead of ice bath: safe from contamination
• No freezing of samples with special cone contour
• Each individual bore shows the temperature of each single tube
• In the 96 - well format
• For 0.2 ml and 0.5 ml, tube strips, plates and single tubes

Eppendorf: Thermomixer comfort

Product features

• Wide temperature control and application ranges thanks to aktive counter-cooling
• Excellent mixing and incubating performance
• Short-mix function
• Flexible programming: two independent programs with separate mixing and rest phases
• Ten different exchangeable thermoblocks offer a high degree of flexibility
• Automatic thermoblock indentification and display of the maximum revolutions
• RS-232 interface and documentation according to GLP
• Quiet operation due to perfect fit of the test tubes in thermoblock
Intended Use(pdf-file)

Flexibility through a selection of ten different exchangeable Thermoblocks for:

• Micro test tubes 0.5 ml
• Micro test tubes 1.5 ml
• Micro test tubes 2.0 ml
• MTPs in all well forms
• Tubes with 11-11.9 mm Ø
• 8 Falcon® tubes 15 ml
• 4 Falcon® tubes 50 ml
• 1.5-2 ml cryo tubes
• 4 microarray slides

Eppendorf: Varipette® with Varitip P and Varitip S

Product features of Varipette®

• Adjustable pipette for 1 ml to 10 ml
• Control button for volume selection
• Digital volume display
• Pipetting lever
• Maintenance-free
• Exchangeable Varitips

Product features of Varitip P and Varitip S

• Varitip P for aspirating 1 ml to 10 ml from beakers - positive-displacement principle
• Varitip S for aspirating 2.5 ml to 10 ml from tall, narrow-neck vessels. System consists of a dispensing part and the Maxitip - air-displacement principle
• No carryover as Maxitip exchanged
• Valve for Maxitip ensures drip-free dispensing of liquids with a high vapor pressure
• Graduated Maxitip G for compensation of nominal value of Varipette

Eppendorf: Varispenser® plus/Varispenser

Product features

• PFA-sealing of the slide piston prevents jamming
• Fine adjustment depending on viscosity of liqiud
• No crystallization of liquid
• No dripping when valve closed
• Telescopic tube for use with high bottles
• Rapid volume setting using precise graduation scale
• Patented safety valve for deairing without loss of reagent
• Cannel-sealing cap prevents media contact

Eppendorf: 0.2 and 0.5 ml PCR tubes

Original Eppendorf PCR tubes are manufactured to the highest Eppendorf quality standards. These thin-walled polypropylene tubes ensure efficient and homogeneous heat transfer in the sample thanks to the even wall thickness and smooth wall surface. Heat-sealed bags enclosed in boxes sealed with a PCR Clean sticker ensure the highest degree of purity.

Product features 0.5 ml PCR Tube, thin-walled

• Frosted area for easy labeling
• High transparency
• Certified free from human DNA, DNase, RNase and PCR inhibitor
• Tight sealing
• Easy to open
• For use with all thermal cyclers with 0.5 ml block format

Product features 0.2 ml PCR Tube, thin-walled

• Contamination shield on hinged lid
• Defined lid position due to special hinge
• High transparency even on the tube base
• Etched lid for additional writing surface
• Tight sealing
• Easy to open
• For use with all thermal cyclers with 0.2 ml block format
• Also availabe in 8-tube strip format
• Certified free from human DNA, DNase, RNase and PCR inhibitor

Product features Work tray and Frame

• The work tray is placed into a frame to form a rack for 96 0.2 ml PCR tubes
• Easy to use: With the work tray, all tubes are loaded into the thermoblock simultaneously
• Both parts are polycarbonate and can be autoclaved (121°C, 20 min.)
• Rack for 0.2 ml PCR tube consisting of work tray and frame

Eppendorf: Micropipette Research® (multi-channel)

Long series in columns, rows and microtiter plates - that is the area of research in which the multi-channel pipette is becoming an ever-increasing force. And it is for this environment that we developed the Research (multi-channel), which can now be operated with one hand only. This high-performance 8- or 12-channel pipette is an effective, precise and rapid way of processing long series for a whole spectrum of different applications.

• 8-channel and 12-channel lower parts can be changed at a flick of the wrist.
• Ideal for series dispensing for molecular biology applications and for all immunology assays, such as applying antibodies, washing or stopping
• The specially designed nose cone of the Research (multi-channel) with an O-ring seal means that very little force is required for attaching and ejecting the tip

Eppendorf: Micropipette Research® (fixed-volume)

Routine work in the liquid handling sector requires pipettes that are particularly durable. Not forgetting, of course, the high levels of precision and accuracy that are required.

The easy-to-operate Research (fixed-volume) for 10 to 1,000 µl fits the bill perfectly. Whether in clinical, industrial or training labs, this compact, ergonomic pipette guarantees outstanding overall performance. With this pipette, even inexperienced users can be sure of high precision from the outset.

• Two-button operation
• Autoclavable lower part
• TÜV award: ergonomic, user-friendly and user-tested
• Viable calibration seal indicates factory calibration has not been changed
• Chemically resistant
• Reduced operating forces
• Single-handed operation
• 4-digit display
• Maintenance-free nose cones
• Three-year warranty

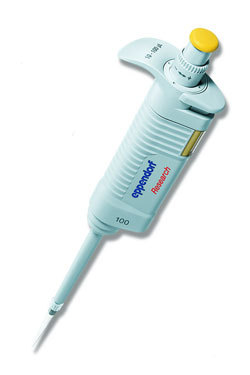

Eppendorf: Micropipette Research® (adjustable)

* Two-button operation
* Autoclavable lower part
* TÜV award: ergonomic, user-friendly and user-tested
* Viable calibration seal indicates factory calibration has not been changed
* Chemically resistant
* Reduced operating forces
* Single-handed operation
* 4-digit display
* Maintenance-free nose cones
* Three-year warranty

Eppendorf: centrifuges MiniSpin® and MiniSpin® plus

Centrifuges MiniSpin® and MiniSpin® plus

Product features of centrifuges MiniSpin® and MiniSpin® plus

• Exceptionally small footprint
• Extremely quiet
• Low noise levels
• Maintenance-free drive
• Easy-to-follow digital display
• Low sample heating (only 12°C after 20 min. atmax. speed)
• Separate short-spin key
• Automatic lid release
• Built-in power unit
• Capacity: 12 x 1.5/2 ml tubes
• Autoclavable rotor (121°C, 20 min.)
• Optional: adaptor for 0.2 ml PCR* tubes, adaptors for 0.4 microcentrifuge tubes, 0.5 ml microcentrifuge tubes and 0.6 ml Microtainer®
• Acceleration and brakingtimes <13>
• Stainless steel rotor lid
• Intended Use (pdf-file)

Additional product features of MiniSpin

• Includes standard rotor made of anodized aluminum
• Max. speed of 13,400 rpm; max. rcf of 12,100 x g
• Timer can be set up to 30 minutes

Additional product features of MiniSpin plus

• Includes refined "Black Line" aluminum rotor
• Max. speed of 14,500 rpm; max. rcf 14,100 x g
• rpm/rcf setting as required
• Timer can be set up to 99 minutes
• Continuous centrifugation possible

Eppendorf: Easypet®

Easypet®
Application
* For graduated and one-mark pipettes from 0.1 ml to 100 ml

Product features
* New valve control enables more sensitive control of the meniscus, resulting in more precise dispensing of the liquids
* Suitable for pipettes of 0.1 ml to 100 ml
* Tight fit, even with wet pipettes
* Smooth setting of the pumping efficiency
* Fine control of the meniscus movement
* High aspirating speed: 25 ml in 5 sec
* One-finger control for the Flow-Out and Blow-Out functions
* Cordless work for up to seven hours, continuing possible while recharging
* Autoclavable pipette adapters and filter holders
* Active pressure compensation prevents corrosion caused by aspirated vapor
* Space-saving wall holder

IKA Magnetic Stirrers with heating: RCT basic IKAMAG

RCT basic IKAMAG® safety control
Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	20 l
Speed deviation of individual stirring positions	5 %
Stirring quantity max. (H2O)	20 l
Motor rating input	16 W
Motor rating output	9 W
Speed display	LED
Speed range	50 - 1500 1/min
Stirring bar length max.	80 mm
Heat output	600 W
Heating rate (1 l H2O in H15)	6.5 K/min
Heating temperature range	50 - 310 °C
Heat control	LED
Heat control accuracy	1 ±K
Speed control	stepless
Adjustable safety circuit min.	50 °C
Adjustable safety circuit max.	360 °C
Connection for ext. temperature sensor	DIN 12 878
Control accuracy with sensor	1 ±K
Set-up plate material	Aluminium alloy
Set-up plate dimensions	Ø 135 mm
Dimensions (W x H x D)	160 x 85 x 270 mm
Weight	2.5 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative moisture	80 %
Protection class according to DIN EN 60529	IP 42
Voltage	220 - 230 / 115 / 100 V
Frequency	50/60 Hz
Power input	650 W
